C18150 Chromium Zirconium Copper

C18150 Chromium Zirconium Copper – Manufacturers, Suppliers, Distributors, Exporters and Wholesalers in Mumbai, India.

Sidhartha Metal Company holds expertise in manufacturing C18150 Chromium Zirconium Copper Alloy in the form of chromium copper rods, chromium copper bars, chromium copper plates and chromium copper strips.

Chemical Composition Of Chromium Zirconium Copper (UNS C18150) :

Cu Cr Zr Other Elements
Balance 0.50 – 1.50 0.05 – 0.25 0.2 MAX

Note – All values in percentage

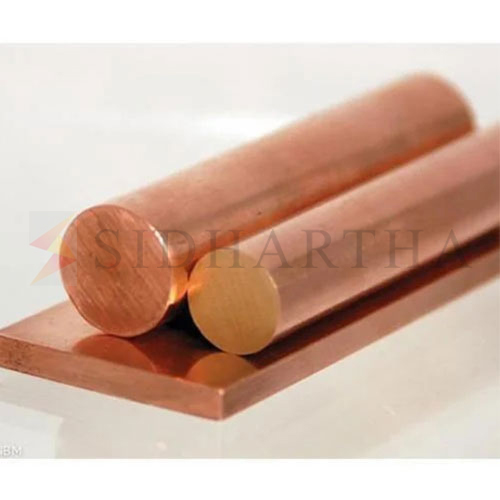

Chromium Zirconium Copper
Chromium Zirconium Copper

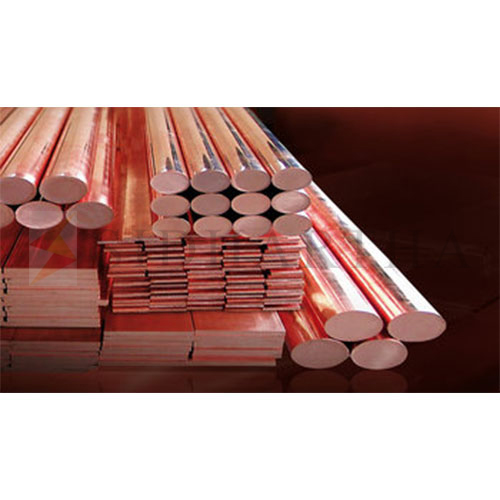

C18150 Chromium Zirconium Copper
C18150 Chromium Zirconium Copper

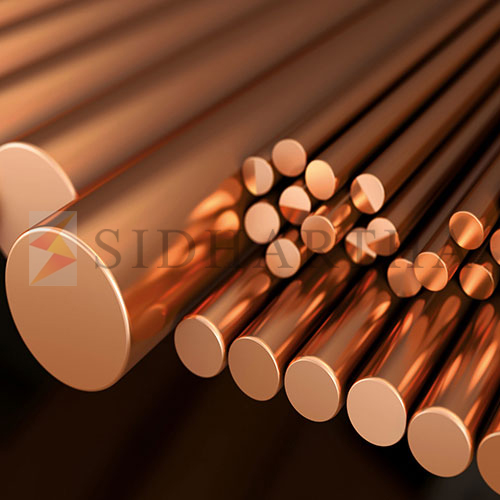

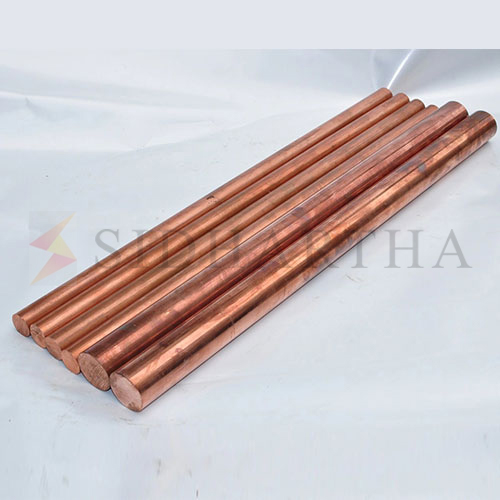

C18150 Chromium Zirconium Copper Rod
C18150 Chromium Zirconium Copper Rod
Chromium Zirocnium Copper Rod
Chromium Zirocnium Copper Rod

C18150 consists of small traces of zirconium (about 0.1%) and chromium (about 1%) with copper. This addition of zirconium and chromium to copper makes it an alloy with high thermal and electrical conductivity. C18150 is an alloy which has good strength and excellent resistance to softening at elevated temperatures. This alloy is made by combining cold work with heat treatment. Thus, C18150 finds vast applications in spot welding, seam welding, resistance welding, plastic mould components and power generation among others where these properties are required and such conditions are present.

GENERAL USES OF C18150 :

Back-up Electrodes Bushings Caps & Shanks Casting Wheels
Connector Bar Connectors Connection Lead Bar Continuous Casting Molds
Centrifugal Casting Molds Circuit Breaker Parts Collector Connector Collector Housing
Cross Wire Welding Electrodes & Components Damper Ring/Finger Dies & Fixtures Electrode Holders and Adaptors
Electrical & Mechanical Power Components Flash & Butt Welding Dies Flexible Connector Heat Flux Components
Non-Sparking Applications Nut & Stud Welding Electrodes Power Generation Products Power Semiconductor Bases
Injection Blow Molds & Dies Lead Conductor Bar Motor End Rings Neutral Bus Bar
Resistance Welding Electrodes Rotor Coil Bars Seam Weld Wheels Series Loop Segment
Sputtering Target Backing Plates Special Nipple Snap Rings Slot Wedge
Slip Rings Shafts Terminal Box Connectors Threaded Electrodes
Transmission Devices Wire for Additive Manufacturing Welding Platens Welding Connectors
Welding Arms Water Clip

Characteristics Of C18150 Chromium Zirconium Copper :

  • High Electrical Conductivity
  • Hardness and Ductility
  • Excellent Resistance
